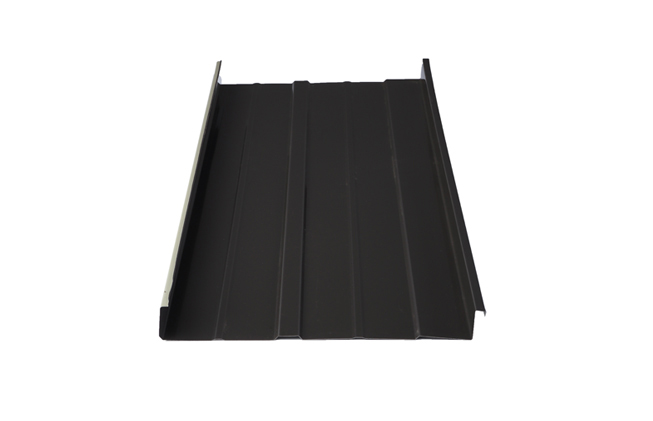

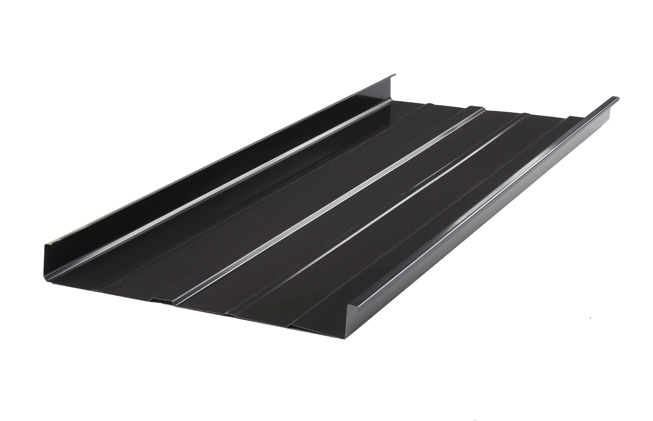

A kind of seam lock roofing for commercial and industrial structures. It is made with an oven cured high performance quality epoxy primer and polyester top coat and back coat paints. Available in Red, Green, Beige, Blue, Orange, White, and Brown variants.
Need to customize your own design to fit your aesthetic? Special colors are also available upon request! Contact our roofing professionals for roofing accessories prices and details.
Features & Benefits:
Application / Uses:
|
Substrate/
Reference Standards
|
Hot-dip Metallic Coated Steel – Hot-dip Zinc-Coated Steel – Hot-dip 55% Aluminum-Zinc Alloy Coated Steel |
|
|
Nominal Thickness
|
0.40 mm to 0.70 mm | |
|
Feed Width
|
610 mm
|
|
| Effective Coverage | 322mm and 470 mm (+/- 2mm) | |
| Rib Height | 51 mm | |
|
Paint Coating System
|
Oven baked oil-free polyester topcoat over a corrosion-resistant primer with oil-free polyester backing coat PVDF, SMP, available upon request |
|
|
Paint Coating Thickness
|
Topcoat : 12 – 15 microns Backcoat : 4–8 microns |
|
|
Available Colors
|
UGC Beige, UGC Blue, UGC Brown, UGC Green, UGC Red, UGC White, Charcoal Gray, Terracotta Orange, Red II Other colors available with terms and conditions applied |
|
|
Length
|
Customized length available with terms and conditions Transportable length up to 20 meters Onsite rollforming for longer panels |
|
