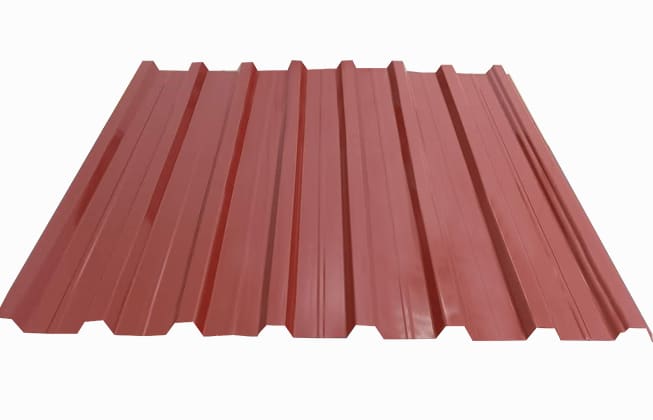

Multi-rib8

9,999.00

Galvanized roofing for mass housing projects and warehouses. Minirib is made with oven cured high performance quality epoxy primer and polyester top coat and back coat paints. Available in Red, Green, Beige, Blue, Orange, White, and Brown variants. Need to customize your own design to fit your aesthetic? Special colors are also available upon request! Contact our roofing professionals for roofing accessories prices and details.​

Features & Benefits:
– Has 8-rib feature with capillary groove that serve as anti-leak feature
– Most applicable for typhoon prone areas

Application / Uses:
– Normally used in mass housing projects, residential, poultry farms and typical warehouses

Description

Substrate/
Reference Standards
Hot-dip Metallic Coated Steel
– Hot-dip Zinc-Coated Steel
– Hot-dip 55% Aluminum-Zinc Alloy Coated Steel
Nominal Thickness
0.30 mm to 0.60 mm
Feed Width
1220 mm
Effective Coverage 1005mm (+/- 10mm)
Rib Height H: 20mm, Pitch: 61mm, Top Base: 29mm
Paint Coating System
Oven-baked oil-free polyester topcoat over a corrosion-resistant primer with oil-free polyester backing coat.
PVDF and SMP are also available upon request.
Paint Coating Thickness
Topcoat : 12 – 15 microns
Backing Coat : 4–8 microns
Available Colors
Red, Green, Brown, Beige, Blue, White, Charcoal Gray, Teracotta Orange, Fire Red
Other Colors available with terms and conditions applied
Length
8,10,12 feet standard
Customized length available with terms and conditions
Transportable length upto 20 meters
Onsite roll-forming for longer panel
