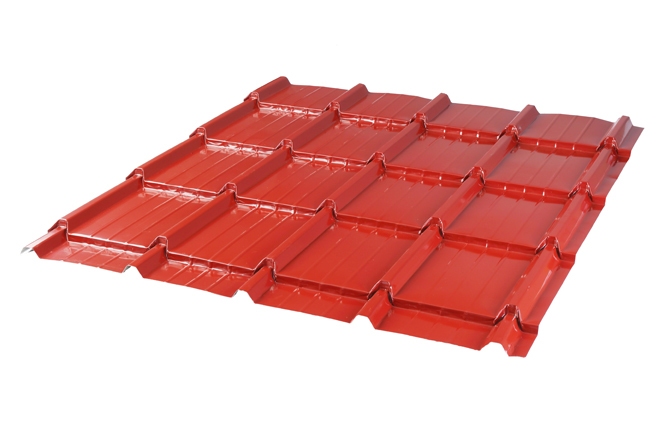

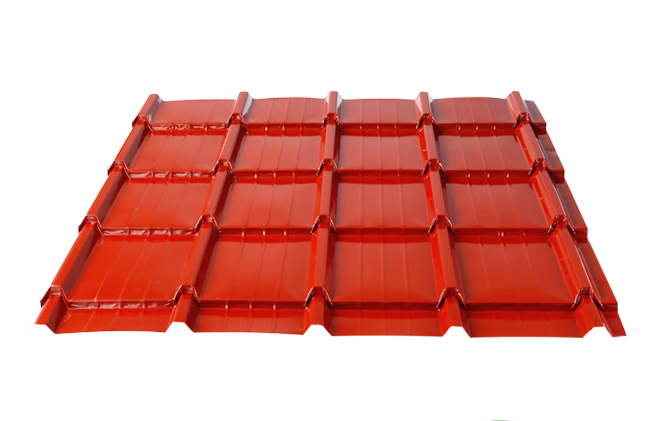

Laverne

Laverne

Features & Benefits:
– Provides an enhance aesthetic look creating an illusion of a concrete roof
– Provides Stronger panel design with leak protection

Application / Uses:
– Ideal for mass housing projects and high end residential buildings

Description

Substrate/
Reference Standards
Hot-dip Zinc-Coated Steel Coils
PNS 1990:2004; JIS G 3302; ASTM A 653; ISO 3575
Hot-dip 55% Aluminum-Zinc Coated Steel Coils
PNS 1993:2004; JIS G 3321; ASTM A 792; ISO 9364
Nominal Thickness
0.30 mm to 0.60 mm
Feed Width
915 mm and 1220 mm
Effective Coverage780 and 1040 mm
Paint Coating System
Oven cured high performance quality epoxy primer and polyester top coat and back coat paints.
Also Available upon requestSilicone Modified Polyester (SMP)
PolyvinylideneDiflouride (PVDF)
Paint Coating Thickness
For Regular Colors :   Topcoat  :   12 – 20 microns
                                Backcoat :   4 – 8 microns
For Multi Colors and Woodgrain  :  Topcoat  :   22 – 28 microns
                                                  Backcoat :   4 – 8 microns
Available Colors
Red, Green, Beige, Blue, Orange, White, Brown, Multicolor and Woodgrain Variants
Special Colors also available upon request
Module Distance
Standard : 300 mm
Variable   : 260 mm minimum
Purlin Spacing
Equal to Module Distance
Depth of Step in Tile
Standard : 10 mm – 20 mm
Variable   :  8 mm – 25 mm upon request
Length
Transportable length up to 20 meters
Onsite Rollforming for longer panels
