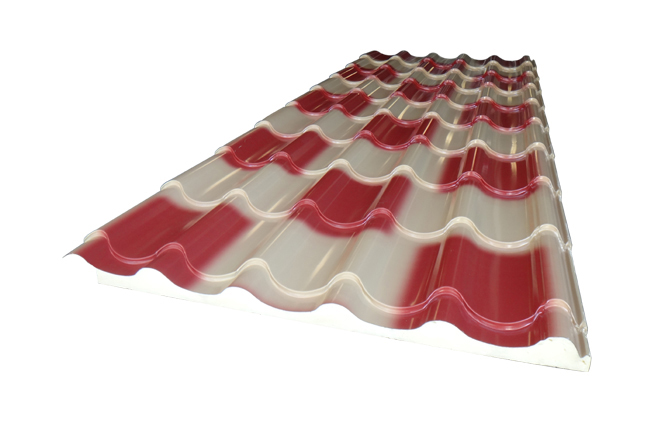

Roofing PU Panel

Roofing PU Panel

Description

THERMAL PROPERTIES

 PANEL
THICKNESS
(mm)
 THERMAL
RESISTANCE, R
m² – °K
W
THERMAL
CONDUCTANCE, C
__W__
m² – °K
25   1.09   0.92
30   1.30   0.77
50   2.17   0.46
10   0.43   2.30
15 0.65 1.53



SPECIFICATIONS

PROPERTY   VALUE   REFERENCE STANDARD
DENSITY 40 – 45 kg/m³ min. DIN EN ISO 845
THERMAL CONDUCTIVITY 0.021 W/m -°K DIN EN 12667
EFFECTIVE COVERAGE
1157 mm
INSULATION (FOAM) THICKNESS



10, 15, 25, 35, 50 mm
SHEATHING / OUTER MATERIAL FINISH PPGI, PPGL, PVC, Kraft Paper
METAL THICKNESS Top: 0.40 to 0.80mm
Bottom: 0.30 to 0.60mm
PANEL LENGTH



Rib Type-Transportable Length depends on location
DENSITY PUR 30 kg/m3
PIR 40 kg/m3
COLORS OF PREPAINTED SHEATHING Red, Blue, Brown, White, Beige & Green
*PU White – USDA approved coating with Solar Reflectance Index (SRI) of 72
