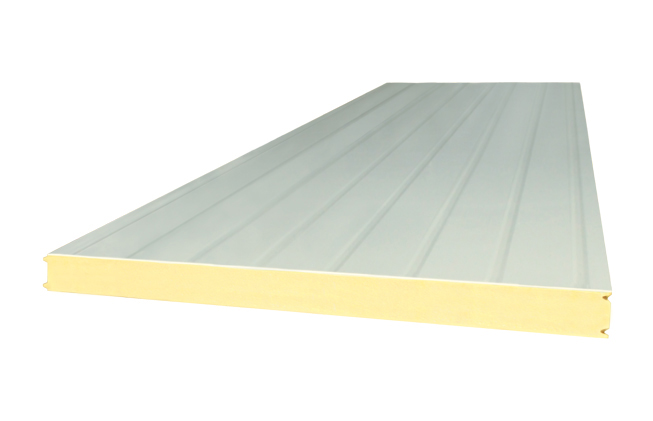

Standard PU Panel

9,999.00

Durable, strong, and energy-efficient building option for construction projects in the Philippines. Union Galvasteel Corporation offers Standard PU Panel for walls, partitions and ceiling of building structures. Available in white and beige variants. Contact our roofing professionals for insulated panel price and details.​

Features & Benefits:
– Insulated panel consist of a rigid foam insulation layer sandwiched between two structural metal
skin surfaces.
– Consist of Polyurethane and Polyisocynurate insulated panels, it forms a strong bond to the
outer skin, creating a stronger panel
– Structurally superior to traditional wood framing—stronger and less susceptible to shifting
– Provide an extremely durable, strong, and energy-efficient building option

Application / Uses:
– Ideal for walls, partitions and ceiling of building structures
– Cold storage for food processing and food storage
– Processing and production plants for food processing
– Commercial Chillers
– Pharmaceutical Products Storage
– Controlled Temperature Rooms

Description

THERMAL PROPERTIES

 PANEL
THICKNESS
(mm)
 THERMAL
RESISTANCE, R
m² – °K
W
THERMAL
CONDUCTANCE, C
__W__
m² – °K
50   2.17   0.46
75   3.26   0.31
100    4.35   0.23
125    5.40   0.18
150 6.62 0.15
200 8.69 0.12



SPECIFICATIONS

PROPERTY   VALUE   REFERENCE STANDARD
DENSITY 40 – 45 kg/m³ min. DIN EN ISO 845
THERMAL CONDUCTIVITY 0.021 W/m -°K DIN EN 12667
EFFECTIVE COVERAGE
1157 mm
INSULATION (FOAM) THICKNESS



20, 50, 75, 100, 150, and 200mm
SHEATHING / OUTER MATERIAL FINISH Prepainted galvanized steel or other metallic coated material
METAL THICKNESS 0.50 mm – 0.80 mm
PANEL LENGTH



12 meters max
DENSITY PUR 40-45 kg/m3
PIR 45-55 kg/m3
THERMAL CONDUCTIVITY 0.23 W/m-°k +/-0.003
COLORS OF PREPAINTED SHEATHING UGC White, Beige
*PU White – USDA approved coating with Solar Reflectance Index (SRI) of 72
