Selected:

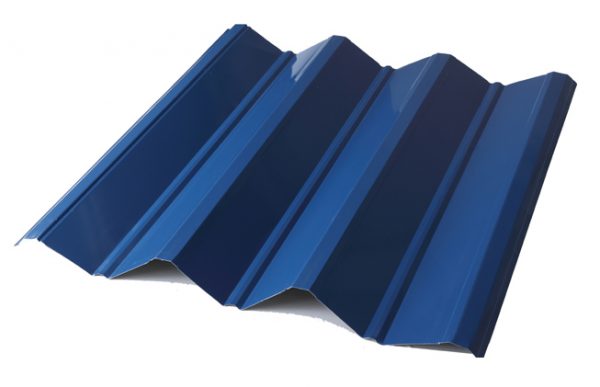

Mega Hi-Rib

Mega Hi-Rib

Features & Benefits:
– Has a deep corrugation design which is capable of carrying large volume of rainwater
– Highest rib height and no flat surface for extra strength and maximum rain drain-off capacity

Application / Uses:
– Ideal for industrial plants with long span and very steep slope

Description

Base Metal Type
Cold Rolled Steel, Commercial Quality
Tensile Strength -275 MPa (40,000 psi)minimum
Substrate/
Reference Standards
Hot-dip Metallic-Coated Steel
Hot-dip Zinc-Coated Steel
Hot-dip 55% Aluminum-Zinc Alloy Coated Steel
Nominal Thickness
0.50 mm to 0.80 mm
Feed Width
1220 mm
Effective Coverage 980 mm (Tolerance +/-10mm)
Rib Height 50 mm
Paint Coating System
Oven-Baked Oil-free Polyester topcoat over a corrosion-resistant Primer with Oil-free Polyester backing coat
Available upon request Bended Accessories, Stainless Materials
Paint Coating Thickness
For Regular Colors :   Topcoat  :   12 – 15 microns
                                Backcoat :   4 – 8 microns
Available Colors
Red, Green, Brown, Beige, Blue, White,  Charcoal Gray, Terracotta Orange, Fire Red
Other Colors available with terms and conditions applied
Length
Transportable length up to 20 meters
Onsite Rollforming for longer panels

Download Brochure
