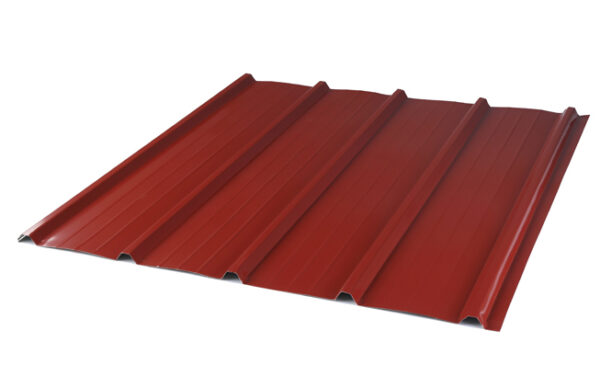

A kind of pre-painted roof designed for heavy rainfall. It is made with oven an cured high performance quality epoxy primer and polyester top coat and back coat paints. Available in Red, Green, Beige, Blue, Orange, White, and Brown variants.
Need to customize your own design to fit your aesthetic? Special colors are also available upon request! Contact our roofing professionals for roofing accessories prices and details.
Features & Benefits:
Application / Uses:
|
Substrates
|
Hot-dip Metallic Coated Steel – Hot-dip Zinc-Coated Steel – Hot-dip 55% Aluminum-Zinc Alloy Coated Steel |
|
|
Nominal Thickness
|
0.30 mm to 0.60 mm (Up to 0.80 mm upon request) | |
|
Feed Width
|
915 mm and 1220 mm | |
| Effective Coverage | 780mm and 1070mm (+/- 10mm) | |
| Rib Height | 22 mm | |
|
Paint Coating System
|
Oven baked oil-free polyester topcoat over a corrosion-resistant primer with oil-free polyester backing coat PVDF, SMP, available upon request |
|
|
Paint Coating Thickness
|
Topcoat : 12 – 15 microns
Backcoat : 4–8 microns |
|
|
Available Colors
|
UGC Beige, UGC Blue, UGC Brown, UGC Green, UGC Red, UGC White, Charcoal Gray, Terracotta Orange, Red II Other colors available with terms and conditions applied |
|
|
Length
|
8,10, 12 feet standard Customized length available but subject to terms & conditions Onsite rollforming for longer panels |
|
