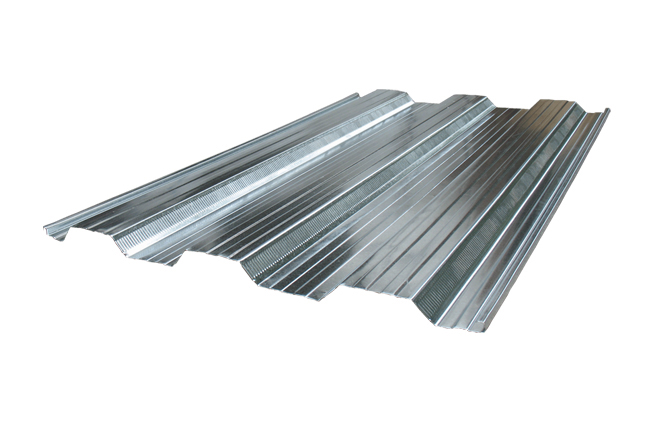

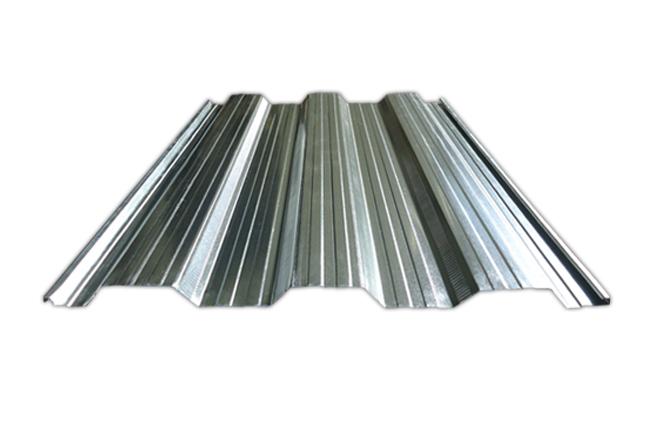

Duraweb

Light yet sturdy reinforcement for your construction projects. Union Galvasteel Corporation offers Duraweb for residential, commercial, and industrial buildings in the Philippines.

Contact our roofing and construction materials professionals for galvanized steel decking price and details.​

Features & Benefits:

  • Rib design provides superior tensile reinforcement and provides better concrete interlock
  • Designed to act positive reinforcement and bonds with concrete as a composite flooring material. It also consumes less concrete and shoring support. Thus, requiring less concrete and helping you save on concrete materials.
  • Steeldeck underside design is aesthetically pleasing; you have the option to retain the underside as is, which saves on costly materials that can escalate your interior design budget.



Application / Uses:

  • Ideal for multi-storey commercial buildings and houses, elevated highways, bridges, overpass, and high rise condominiums.
Materials
Hot-dip Zinc-Coated Steel
Nominal Thickness
0.80mm to 1.20 mm
Feed Width
1220 mm
Effective Coverage 1020 mm (+/- 5mm)
Steel Grade Structural Quality
Yield Strength: 275 – 340 MPa (40,000 – 50,000 psi)
Also available in Commercial Quality (CQ)
Yield Strength 160 MPa and other
Structural grades available
Length Customized length available but subject to terms & conditions
Applications Decking for residential, commercial and industrial buildings, elevated roads, tunnels, and bridges
