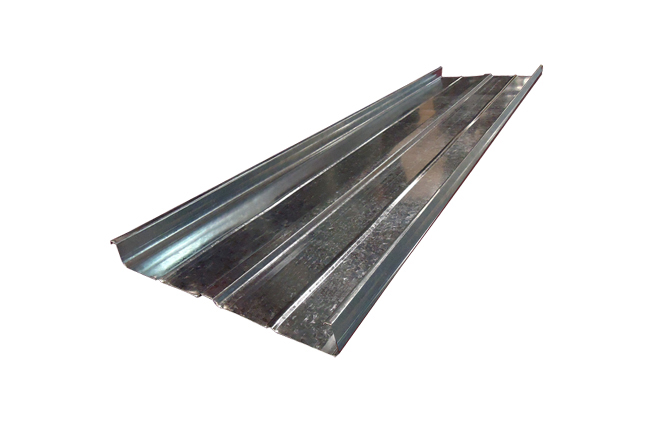

Duradeck

99,999.00

Light yet sturdy reinforcement for your construction projects. Union Galvasteel Corporation offers Duradeck for residential, commercial, and industrial buildings in the Philippines. Contact our roofing and construction materials professionals for galvanized steel decking price and details.​

Features & Benefits:
– Rib design provides superior tensile reinforcement and provides better concrete interlock
– Designed to act positive reinforcement and bonds with concrete as a composite flooring
material, and can consume less concrete and shoring support thus saves on construction
material, basically less concrete requirement
– Steeldeck underside design is aesthetically pleasing; you have the option to retain the
underside as is, which saves on costly materials that can escalate your interior design budget.

Application / Uses:
– Ideal for multi-storey commercial buildings and houses, elevated highways, bridges, overpass
and high rise condominiums.

Description



Substrate/
Reference Standards
Continuous Hot-dip Zinc-Coated Galvanized Steel

PNS 1990:2004; JIS G 3302; ASTM A 924/653; ISO 3575

Nominal Thickness
0.80, 1.00, 1.20 mm
Feed Width
406 and 610 mm
Effective Coverage 261 and 465  mm
Steel Grade Structural Quality, Yield Strength: 275 – 550 MPa (40,000 – 80,000 psi)
Also Available: Commercial Quality, CQ 160 MPa
Zinc Coating Z80
Length Any transportable length
Applications Decking for residential, commercial and industrial buildings
