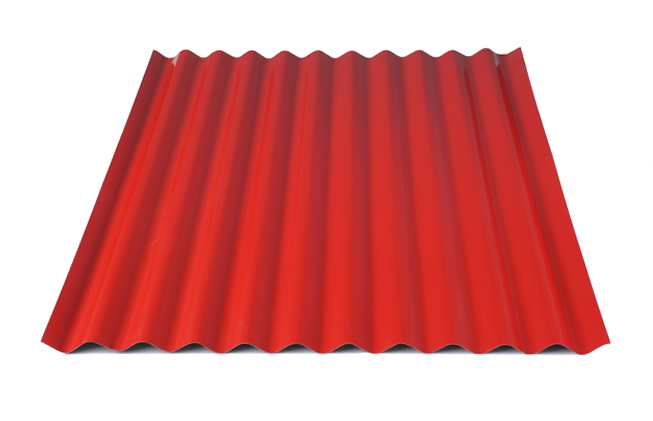

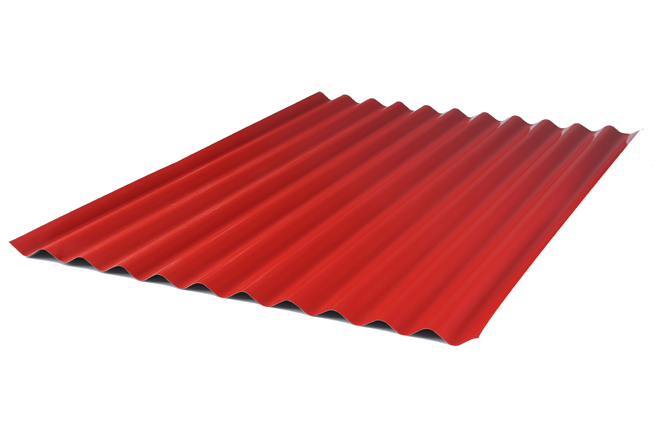

Duracorr

Features & Benefits:

  • Classic and typical type of roof, the most used roof design because of its reliability and simplicity
  • Sinusoidal corrugation provides superior strength and stability where it cannot be easily dented when stepped on because of its special attribute of equally distributed corrugation and durability



Application / Uses:

  • Ideal for school and conventional housing projects
  • Can be used as sidings or undersheathing for poultry houses, typical warehouses, and manufacturing plants
  • Can also be used for residential, small, and mid-scale commercial, and industrial projects
Substrates
Hot-dip Metallic Coated Steel
– Hot-dip Zinc-Coated Steel
– Hot-dip 55% Aluminum-Zinc Alloy Coated Steel
Nominal Thickness
0.30mm to 0.60mm (Up to 0.80mm upon request)
Feed Width
915mm, 1220mm
Corrugated Width
812mm, 1080mm (+/-12mm)
Effective Coverage
1 1/2 Lapping710mm, 980mm (+/-12mm)
2 Lapping680mm, 940mm (+/-12mm)
2 1/2 Lapping630mm, 895mm (+/-12mm)
Paint Coating SystemOven baked oil-free polyester topcoat over a corrosion-resistant primer with oil-free polyester backing coat
PVDF, SMP, available upon request
Paint Coating Thickness
Topcoat : 12 – 15 microns
Backing Coat : 4–8 microns
Available Colors
UGC Beige, UGC Blue, UGC Brown, UGC Green, UGC Red, UGC White, Charcoal Gray, Terracotta Orange, Red II
Other colors available with terms and conditions applied
Length
8, 10, 12 feet standard
Customized length available with terms and conditions
Transportable length up to 20 meters
